Dual Channel Synthesizer


Call 877.870.6789 for pricing

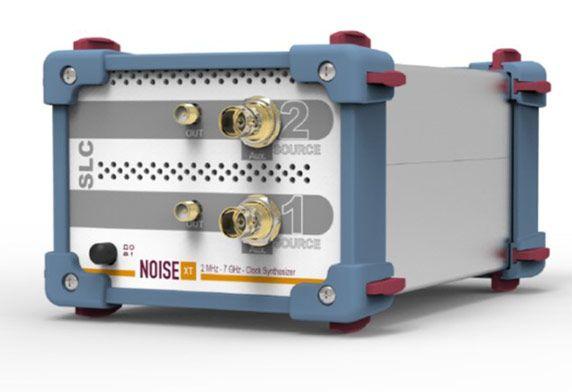

Low phase noise synthesizer Model Number SLC-1111, 2 - 7000 MHz, Dual Channel, USB Control
Phase Noise Floor down to - 170 dBc/Hz
See SLC Data Sheet For Details

  • Output Frequency 2 MHz to 7 GHz
  • Frequency Resolution 0.001 Hz
  • Frequency Switching time (list mode) < 1 ms or < 150 us (option)
  • Frequency Dwell time 2 ms to 20,000 ms Output Level -30 dBm to +13 dBm (to +17 dBm in 4 MHz-4 GHz)
  • Level Resolution 0.5 dB
  • Non-Harmonic spurious -70 dBc above 1 kHz offset (-76dBc typ)
  • Modulation DC coupled FM (8ppm/V VCXO, 0.6ppm/V OCVCXO option, 1kHz BW max)
  • Output connector SMA female, 50 Ohms

Low Noise Reference Synthesizer for timing, communications, and radar applications
